LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 433/868/915MHz NRF52840 1.54 E-Paper GPS RTC NFC BME280 for Arduino

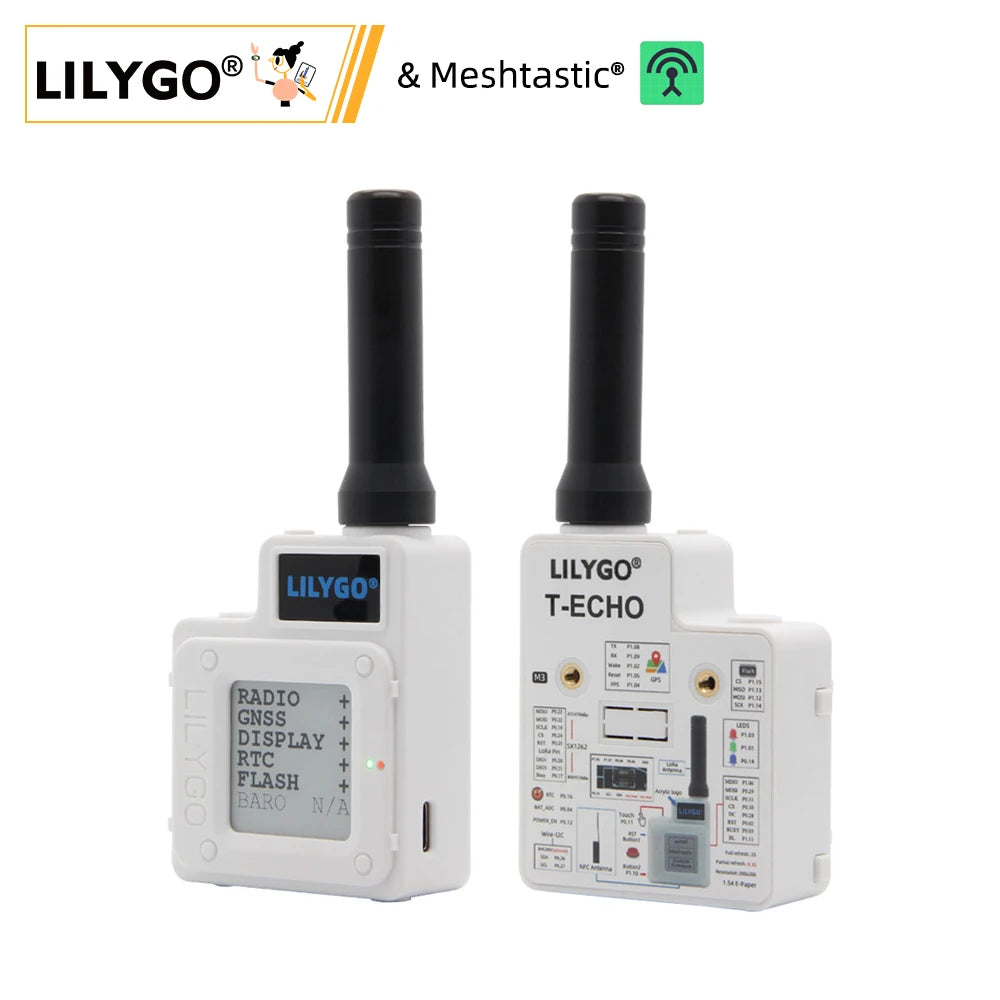

LILYGO® & Meshtastic T-Echo:

• A evolved version of LILYGO T-BEAM, T-Echo is designed with a focus on Meshtastic compatibility, featuring Bluetooth and low power consumption.

• It utilizes the NRF52840 SoC, supporting Bluetooth 5 / Threads / Zigbee multi-protocol.

• The LORA function, inherited from T-BEAM, uses the LILYGO SX1262 version functional module with a Semtech SX1262 LORA RF transceiver chip.

• Operating in the 433/868/915MHz ISM frequency band, it integrates a high stability TCXO 32MHz crystal oscillator, ensuring half-duplex transceiver functionality with a power of up to +22dBm and receiving sensitivity of -139dBm.

• The module enables automatic transceiver switching, internal transmission and reception channel isolation, and employs advanced LORA spread spectrum communication technology for robust anti-interference and privacy. This facilitates long-distance wireless data transmission and reception.

Upgrade Content:

• Upgraded from the fragile 3D printed shell to a more durable ABS material enclosure, aligning better with the product's positioning.

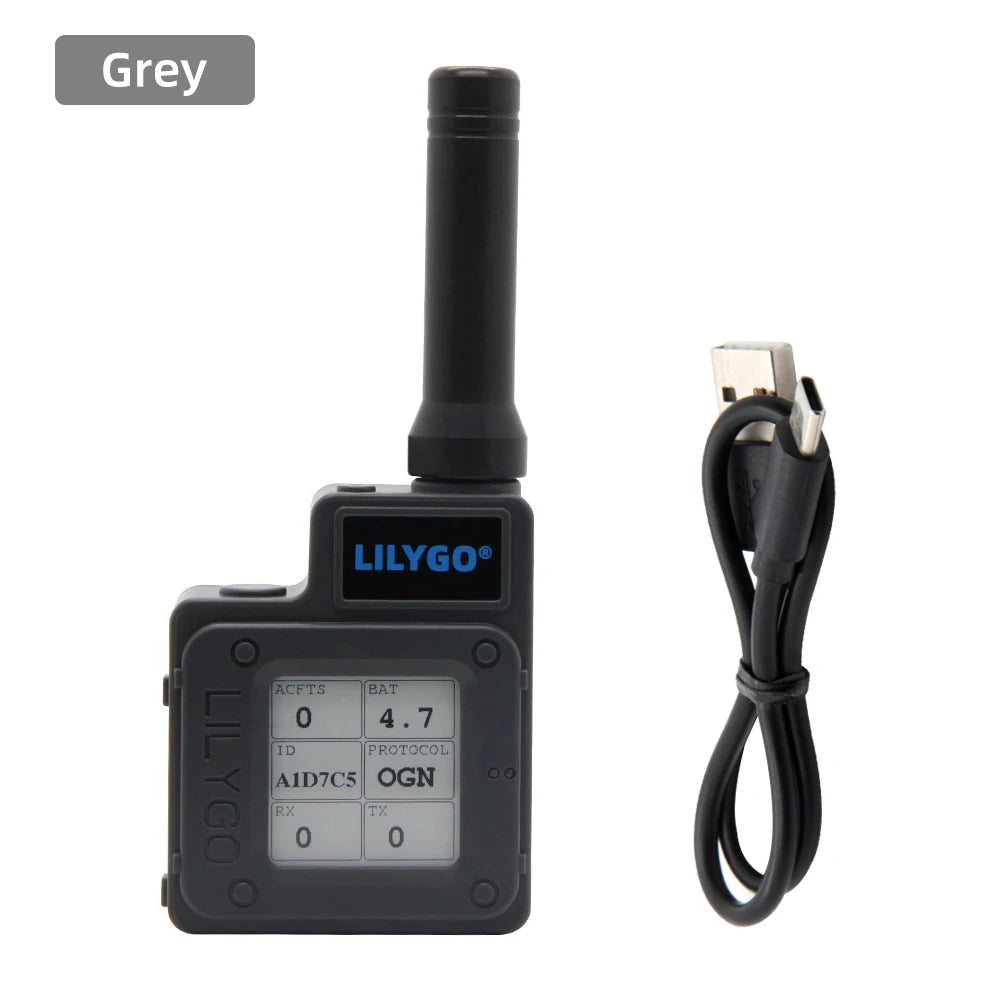

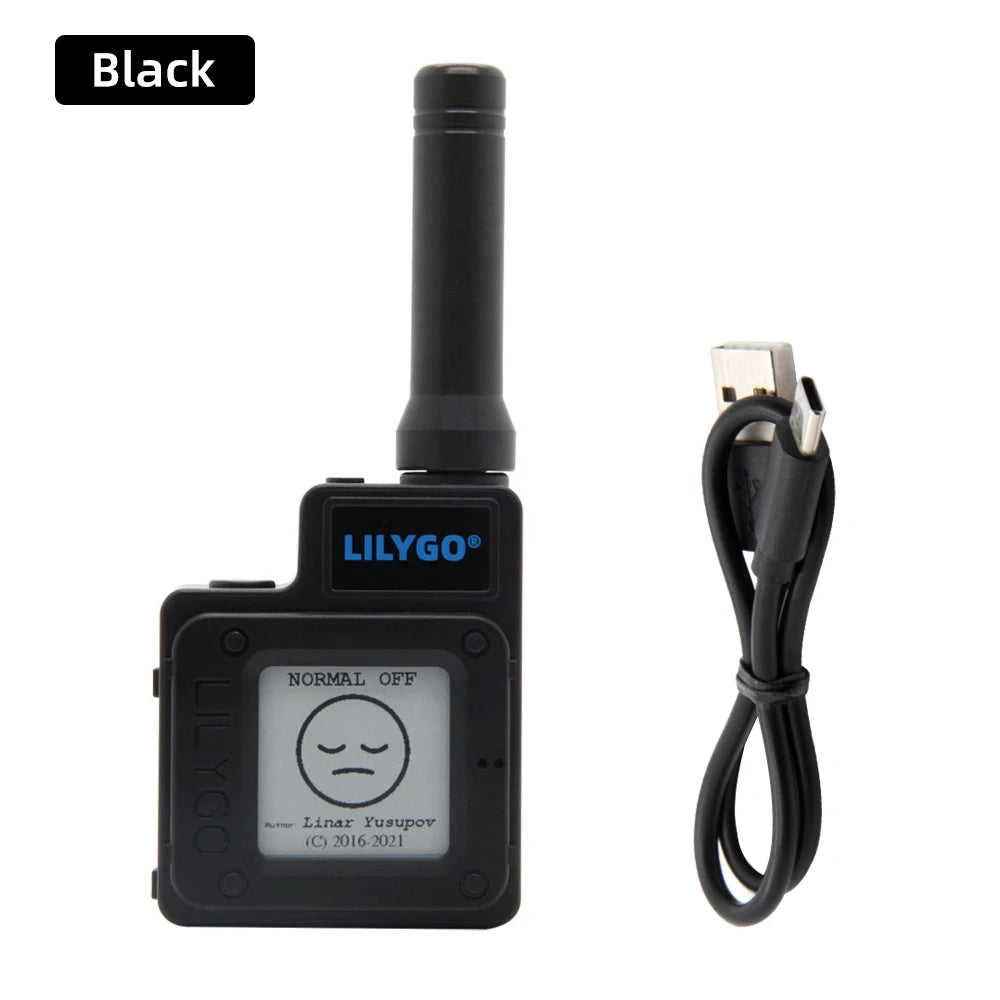

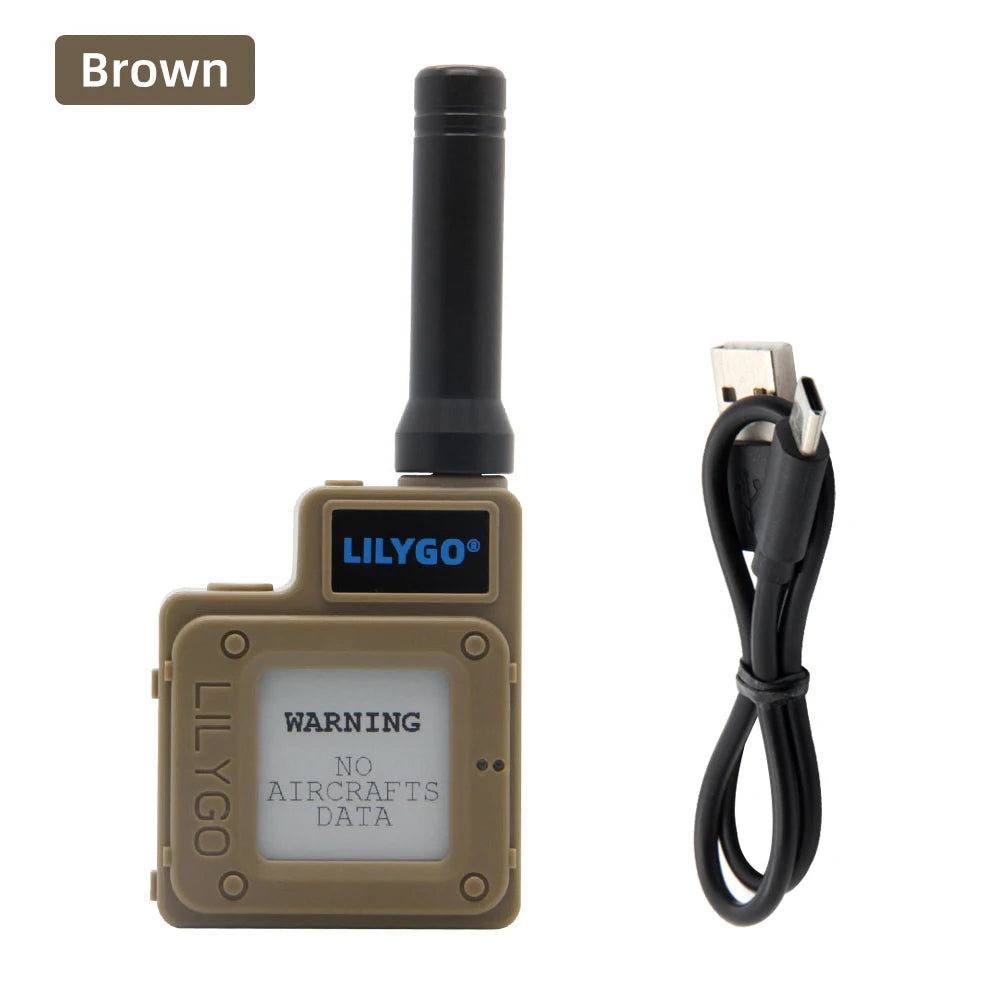

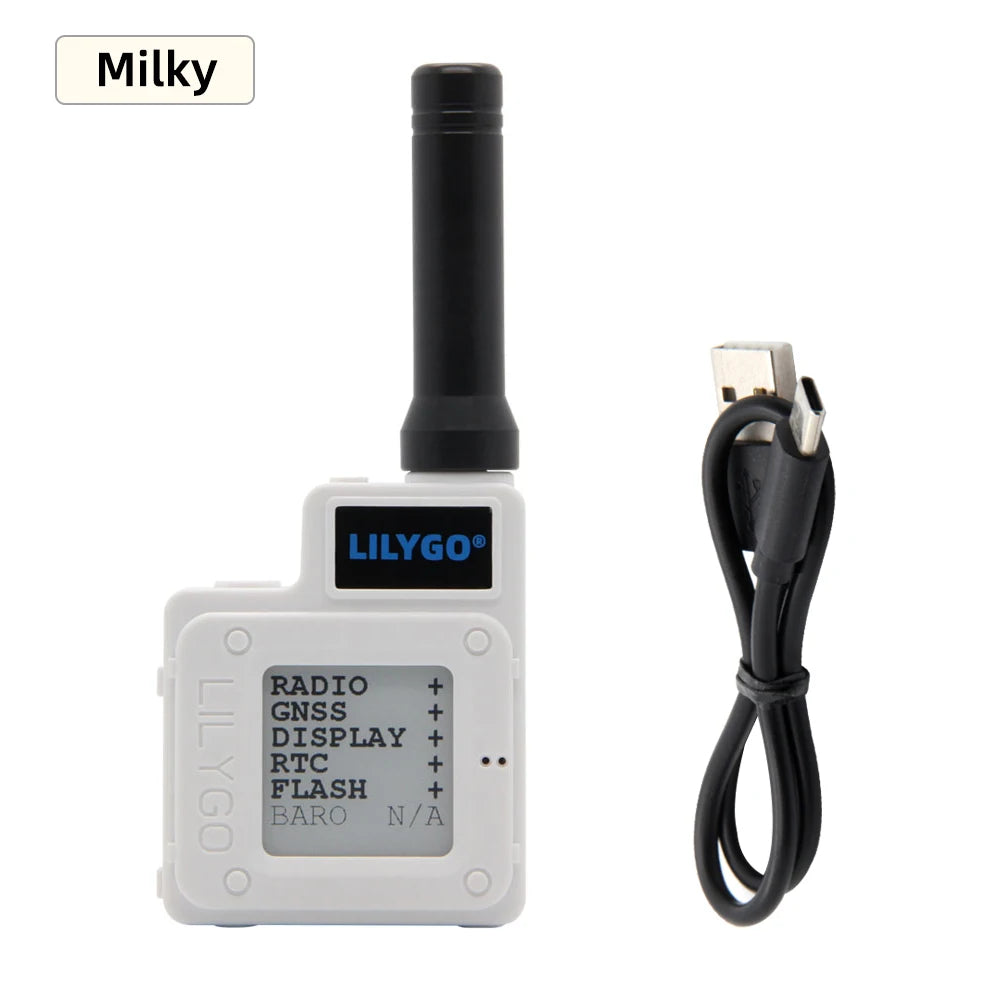

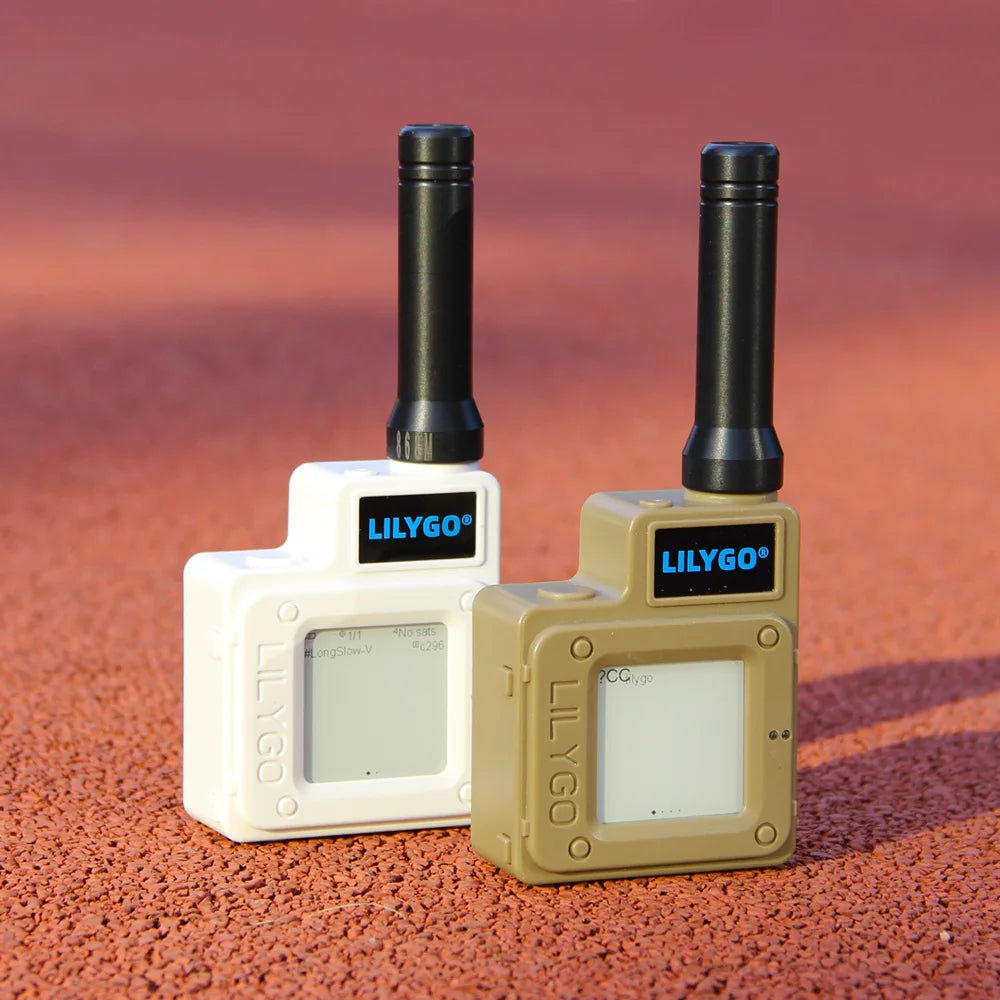

• Color options have expanded to include white, black, gray, and brown, offering greater variety.

Update time: February 11, 2022

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

• LILYGO Basic Example

• Meshtastic

Battery capacity: 850mAh

Application scenarios:

• DIY creation
• LoRa networking
• GPS positioning
• IOT terminal controlle
• Stem education product

L76K Module Features:

• The L76K module boasts a multi-satellite positioning system supporting GPS, BeiDou, GLONASS, and QZSS.
• It allows both multi-system joint positioning and single-system independent positioning, featuring AGNSS support.
• Equipped with a built-in low-noise amplifier and surface filter, this module ensures fast, accurate, and high-performance GNSS positioning.
• Compared to a single GPS system, the multi-satellite system significantly enhances the number of visible and usable satellites, improving positioning accuracy, even in complex urban environments.
• The AGNSS function reduces first positioning time, and the built-in low-noise amplifier ensures high sensitivity and precision in signal capture and tracking, even under weak signal conditions.
• The integrated surface acoustic filter enhances anti-interference ability, and the module includes an active antenna detection and protection circuit for durability.

The display features a 1.54-inch electronic paper display with a front light, offering 200x200 resolution for clear visibility even in dark environments.

What's in the box?

• 1 X T-ECHO
• 1 X USB Battery Cable
